A half-inch by eight-inch by two-foot steel plate with six three-quarter-inch diameter by two-foot-six-inch deformed bar anchors connects the framing to the masonry wall. The plate laps with chord steel chord bars specified per detail nine on sheet S5.00. Six masonry cells are solidly grouted with two number five bars in each cell. Additional information is referenced on detail eighteen of sheet S5.00.

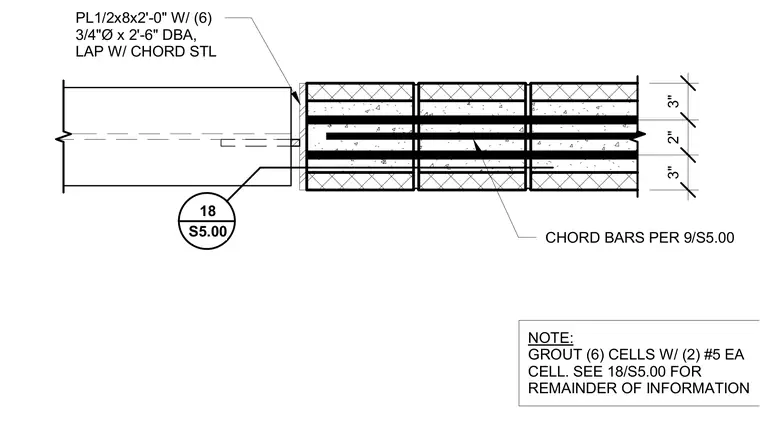

PL1/2x8x2'-0" W/ (6) 3/4"Ø x 2'-6" DBA, LAP W/ CHORD STL CHORD BARS PER 9/S5.00 NOTE: GROUT (6) CELLS W/ (2) #5 EA CELL. SEE 18/S5.00 FOR REMAINDER OF INFORMATION 3" 2" 3" 18 S5.00
