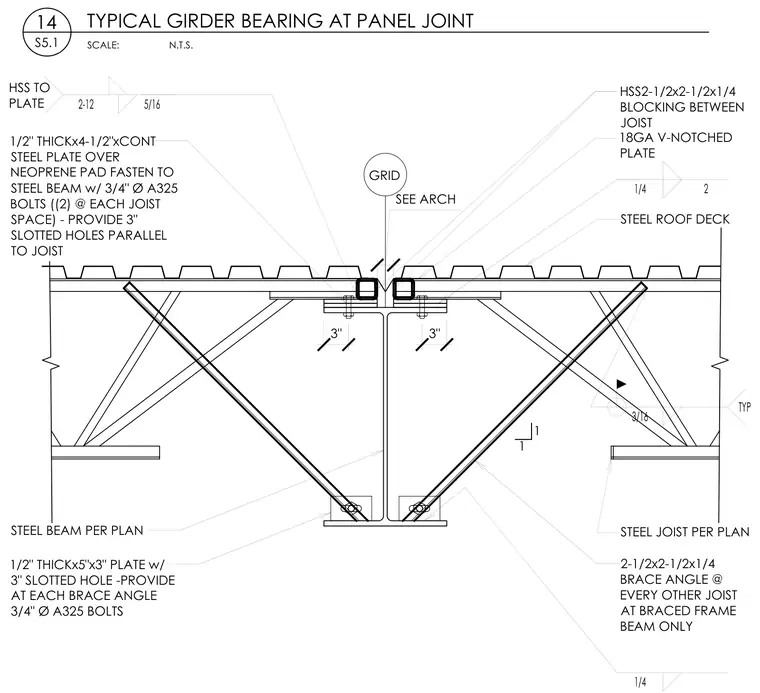

A steel girder bearing assembly at a panel joint supports steel roof deck and open web steel joists. A continuous 1/2-inch thick steel plate over a neoprene pad fastens to the steel beam with 3/4-inch diameter ASTM A325 bolts, utilizing 3-inch slotted holes parallel to the joist. Hollow structural section members measuring 2-1/2 x 2-1/2 x 1/4 inches provide blocking between joists alongside an 18-gauge V-notched plate. Brace angles measuring 2-1/2 x 2-1/2 x 1/4 inches are included at every other joist at the braced frame beam only, connected using 1/2-inch thick by 5-inch by 3-inch plates with 3-inch slotted holes and 3/4-inch diameter ASTM A325 bolts.
1 1 3" 3" GRID SEE ARCH HSS2-1/2x2-1/2x1/4 BLOCKING BETWEEN JOIST 18GA V-NOTCHED PLATE STEEL ROOF DECK 1/4 2 TYP 3/16 STEEL JOIST PER PLAN 2-1/2x2-1/2x1/4 BRACE ANGLE @ EVERY OTHER JOIST AT BRACED FRAME BEAM ONLY 1/4 2-12 5/16 1/2" THICKx4-1/2"xCONT STEEL PLATE OVER NEOPRENE PAD FASTEN TO STEEL BEAM w/ 3/4" Ø A325 BOLTS ((2) @ EACH JOIST SPACE) - PROVIDE 3" SLOTTED HOLES PARALLEL TO JOIST STEEL BEAM PER PLAN 1/2" THICKx5"x3" PLATE w/ 3" SLOTTED HOLE -PROVIDE AT EACH BRACE ANGLE 3/4" Ø A325 BOLTS SCALE: 14 S5.1 TYPICAL GIRDER BEARING AT PANEL JOINT N.T.S. HSS TO PLATE
