A horizontal steel girt bears onto a hollow structural section support jamb via a 3/8-inch bent plate with a vertical slotted hole on each side. A seven-eighths-inch diameter through bolt with double nuts secures the girt to the bent plate connection. A wind girt hanger extends from the top flange of the girt where required. Insulated metal panels are installed on the exterior face by others, maintaining a minimum one-and-one-half-inch gap.

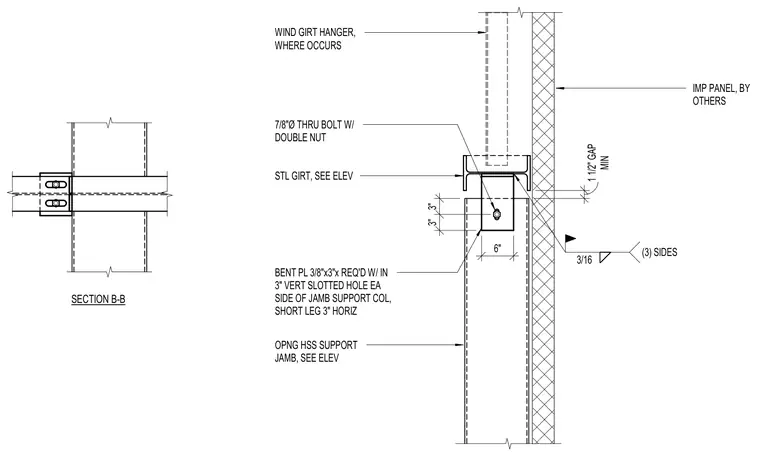

SECTION B-B 6" 3" 3" MIN 1 1/2" GAP OPNG HSS SUPPORT JAMB, SEE ELEV BENT PL 3/8"x3"x REQ'D W/ IN 3" VERT SLOTTED HOLE EA SIDE OF JAMB SUPPORT COL, SHORT LEG 3" HORIZ STL GIRT, SEE ELEV 7/8"Ø THRU BOLT W/ DOUBLE NUT WIND GIRT HANGER, WHERE OCCURS IMP PANEL, BY OTHERS 3/16 (3) SIDES
