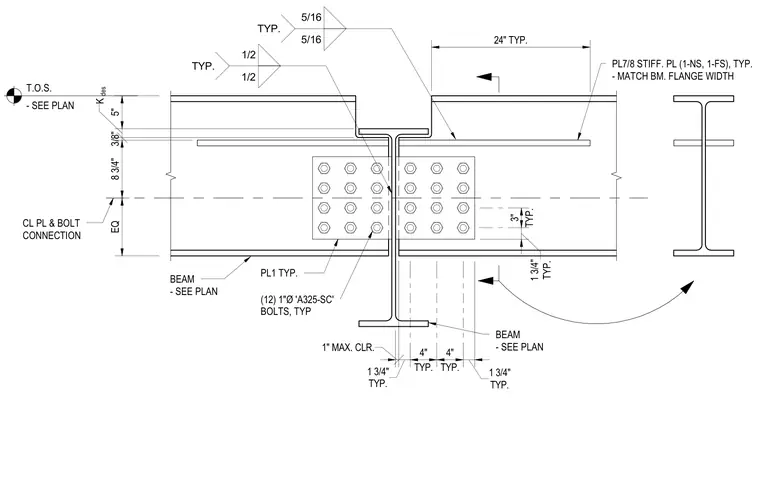

Two structural steel beams connect end-to-end utilizing a bolted web connection plate with twelve 1-inch diameter A325-SC slip-critical bolts on each side. The web plate connects the vertical webs with symmetrical edge clearances and a one-inch maximum gap. Seven-eighth-inch thick stiffener plates matching the beam flange width are welded to the top and bottom flanges with five-sixteenth and one-half inch fillet welds. Top of steel elevations and beam sizes are determined per plan.
EQ 8 3/4" 3/8" K 5" des 24" TYP. 1" MAX. CLR. TYP. 1 3/4" TYP. 4" TYP. 4" TYP. 1 3/4" TYP. 1 3/4" TYP. 3" BEAM - SEE PLAN BEAM - SEE PLAN (12) 1"Ø 'A325-SC' BOLTS, TYP CL PL & BOLT CONNECTION PL1 TYP. PL7/8 STIFF. PL (1-NS, 1-FS), TYP. - MATCH BM. FLANGE WIDTH 1/2 1/2 TYP. 5/16 5/16 TYP. T.O.S. - SEE PLAN
