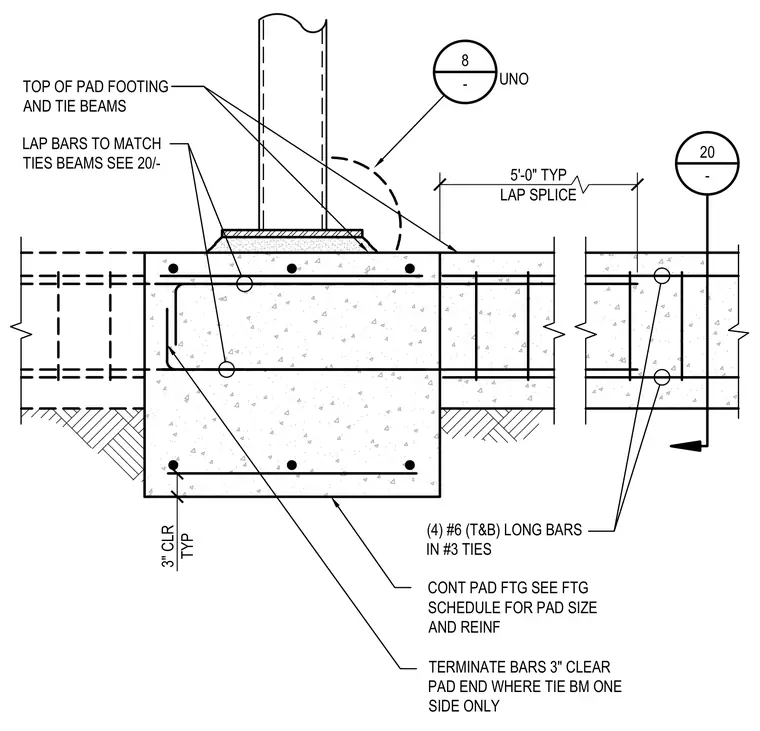

A structural intersection of a concrete tie beam and a pad footing with specified reinforcing steel. Four number six longitudinal bars are placed at the top and bottom within number three ties. Bars terminate three inches clear of the pad end where a tie beam occurs on one side only. A five foot typical lap splice is provided for the reinforcement, with lap bars matching the tie beams. The continuous pad footing size and reinforcement are determined per the footing schedule.
TERMINATE BARS 3" CLEAR PAD END WHERE TIE BM ONE SIDE ONLY CONT PAD FTG SEE FTG SCHEDULE FOR PAD SIZE AND REINF 3" CLR TYP LAP BARS TO MATCH TIES BEAMS SEE 20/- (4) #6 (T&B) LONG BARS IN #3 TIES 20 - 8 - UNO 5'-0" TYP LAP SPLICE TOP OF PAD FOOTING AND TIE BEAMS
