Canopy Support and Braced Frame Plan Detail

Materials

Steel

Elements

Columns Windows Canopies Decks Arches Bracing Drainage

Connections

Braced Frame Connection HSS Connection Bracing Connection

About this detail

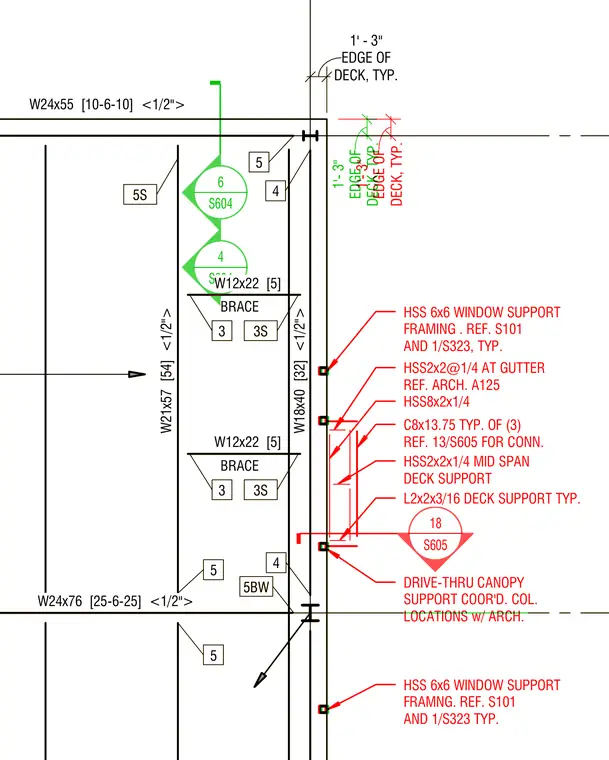

This structural plan detail shows a braced frame assembly with W24x55, W21x57, W18x40, and W24x76 wide flange beams and W12x22 brace members. Additional framing includes HSS 6x6 window support framing, HSS 8x2x1/4 members, HSS 2x2x1/4 members at the gutter and mid-span deck support, C8x13.75 channels, and L2x2x3/16 angles for typical deck support. A typical 1'-3" edge of deck dimension is indicated, along with references to architectural sheets for drive-thru canopy support and gutter coordination.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
