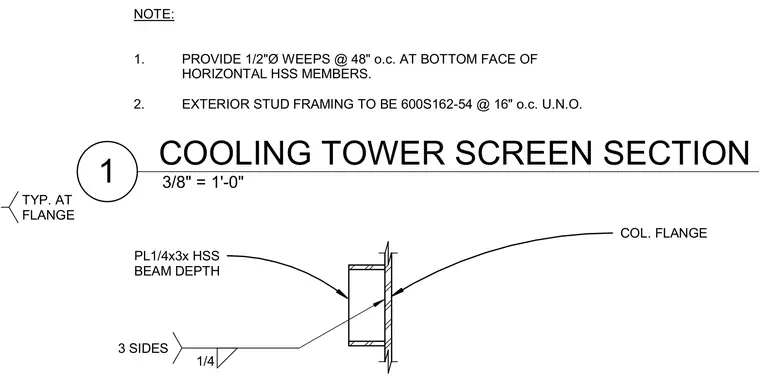

A hollow structural section beam connects to a column flange using a quarter-inch fillet weld applied on three sides. A quarter-inch by three-inch plate matches the hollow structural section beam depth at the connection. Horizontal hollow structural section members require half-inch diameter weep holes spaced at forty-eight inches on center along the bottom face. Exterior stud framing consists of 600S162-54 studs spaced at sixteen inches on center unless noted otherwise.
COL. FLANGE PL1/4x3x HSS BEAM DEPTH 1/4 3 SIDES NOTE: 1. PROVIDE 1/2"Ø WEEPS @ 48" o.c. AT BOTTOM FACE OF HORIZONTAL HSS MEMBERS. 2. EXTERIOR STUD FRAMING TO BE 600S162-54 @ 16" o.c. U.N.O. TYP. AT FLANGE 3/8" = 1'-0" 1 COOLING TOWER SCREEN SECTION
