Notched Bent Plate at Steel Column and Window Head and Sill

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Windows Curtain Walls Floors / Slabs Decks Arches Bracing

Connections

Bracing Connection

About this detail

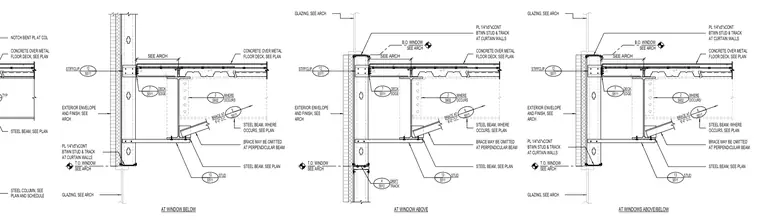

A structural steel beam supports a concrete-over-metal-deck floor assembly, framing into a steel column with a notched bent plate detail. At the exterior envelope, continuous quarter-inch by five-inch plates are placed between studs and tracks at curtain wall intersections. Stiffclips and drift tracks accommodate vertical movement at window heads and sills. Diagonal braces spaced at six feet on center tie into the steel framing, with provisions for braces to be omitted at perpendicular beams.
