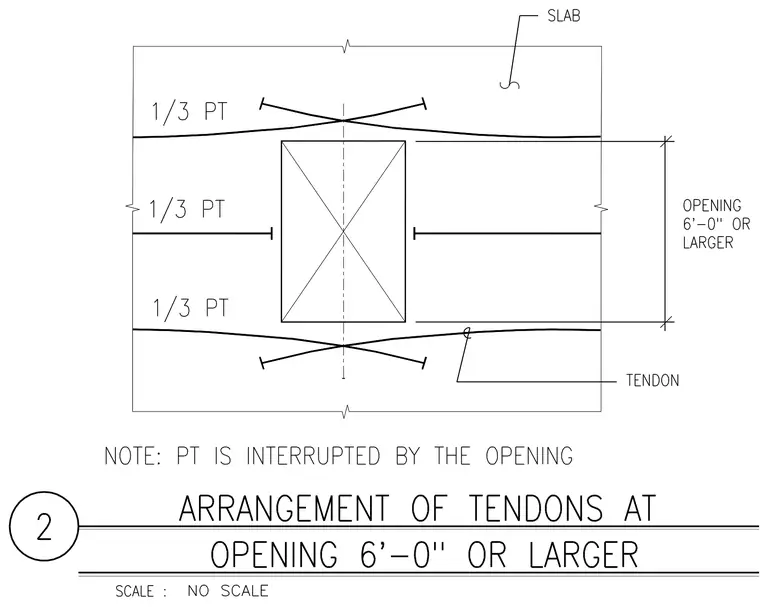

This diagram details the post-tensioned tendon arrangement for a structural concrete slab interrupted by an opening six feet or larger in width. The post-tensioning tendons are diverted around the opening into one-third point bands above and below the void. The layout indicates that the continuous post-tensioning is interrupted by the opening, requiring proper tendon deviation and profile adjustment.
