Structural · S-JYJSF

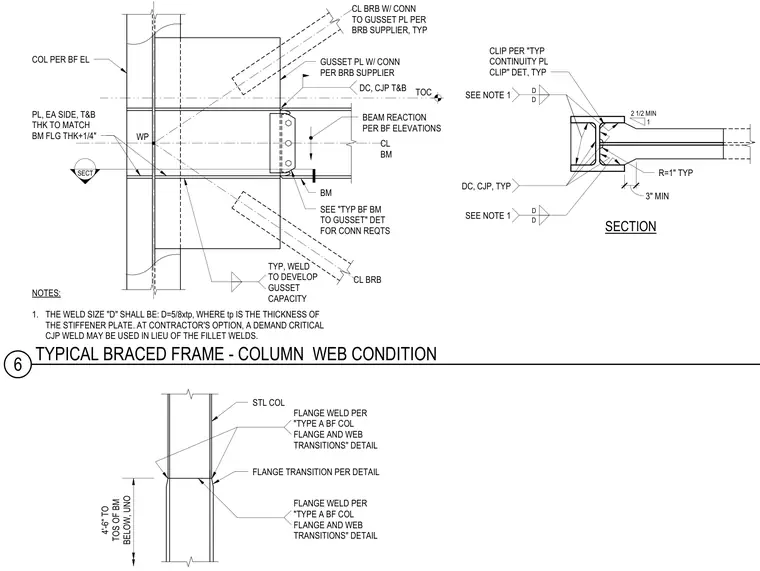

Typical Braced Frame Column Web Condition

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Welded Connection

About this detail

A typical braced frame connection at a steel column web condition utilizes a gusset plate and beam connection. The assembly features plates on each side with top and bottom thickness matching the beam flange thickness plus one-quarter inch. Welds are specified to develop gusset capacity, with demand critical complete joint penetration welds used on top and bottom plates. Continuity plates are clipped with a typical one-inch radius and welded with fillet welds sized per the plate thickness formula, or alternatively using a demand critical complete joint penetration weld at the contractor's option.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
