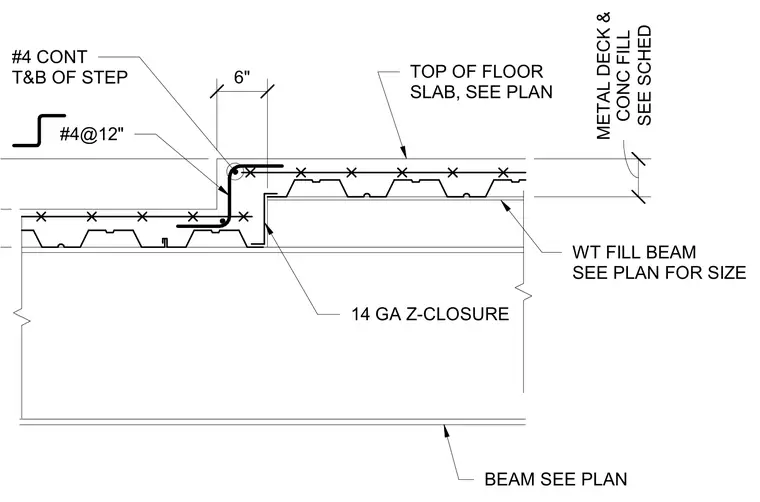

A stepped concrete-filled metal deck bears on a structural WT fill beam, sized per plan. A fourteen-gauge Z-closure retains the edge of the slab step, with a six-inch horizontal offset dimension. Continuous number four reinforcing bars are placed at the top and bottom of the step, supplemented by number four bars spaced at twelve inches on center.
BEAM SEE PLAN TOP OF FLOOR SLAB, SEE PLAN 14 GA Z-CLOSURE #4@12" #4 CONT T&B OF STEP WT FILL BEAM SEE PLAN FOR SIZE 6" SEE SCHED METAL DECK & CONC FILL
