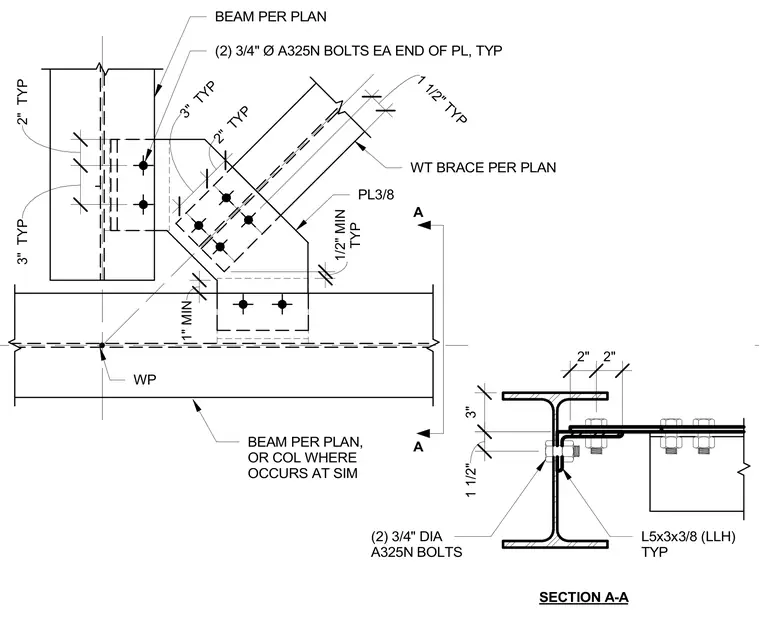

A WT brace connects to a structural steel beam or column using a three-eighths-inch thick gusset plate. The gusset plate is fastened with two three-quarter-inch diameter A325N bolts at each end of the plate. Section A-A details the angle brace framing connection utilizing two three-quarter-inch diameter A325N bolts and an L5x3x3/8 angle profile.
BEAM PER PLAN (2) 3/4" Ø A325N BOLTS EA END OF PL, TYP WT BRACE PER PLAN PL3/8 3" TYP 2" TYP 3" TYP 2" TYP A A 2" 2" L5x3x3/8 (LLH) TYP 3" SECTION A-A 1 1/2" TYP 1/2" MIN 1 1/2" TYP (2) 3/4" DIA A325N BOLTS 1" MIN WP BEAM PER PLAN, OR COL WHERE OCCURS AT SIM
