Structural · S-JY99M

Column Web Parallel to Beam Web Connection

Elements

About this detail

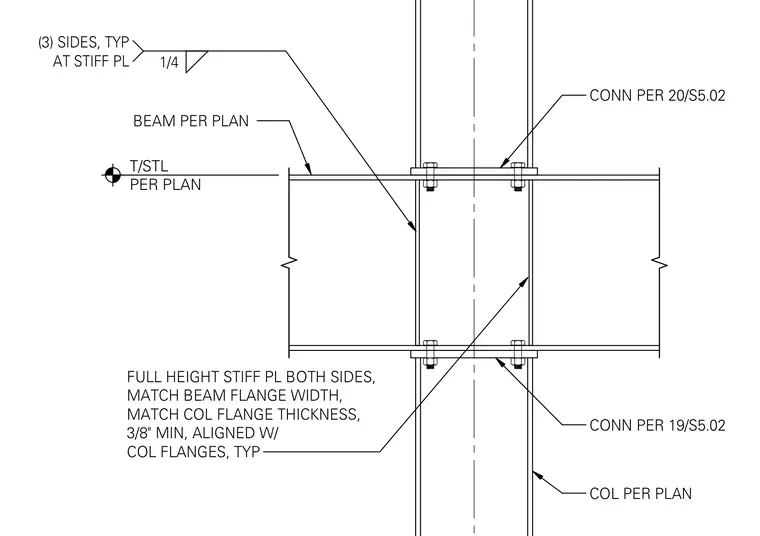

Steel beams frame into a structural steel column with its web parallel to the beam web, utilizing full-height column stiffener plates on both sides. The stiffener plates are sized with a minimum thickness of three-eighths inches matching the column flange thickness, aligned with the column flanges, and matching the beam flange width. A one-quarter inch fillet weld is specified on three sides typically at the stiffener plates. Connections reference details nineteen and twenty on sheet S5.02.
