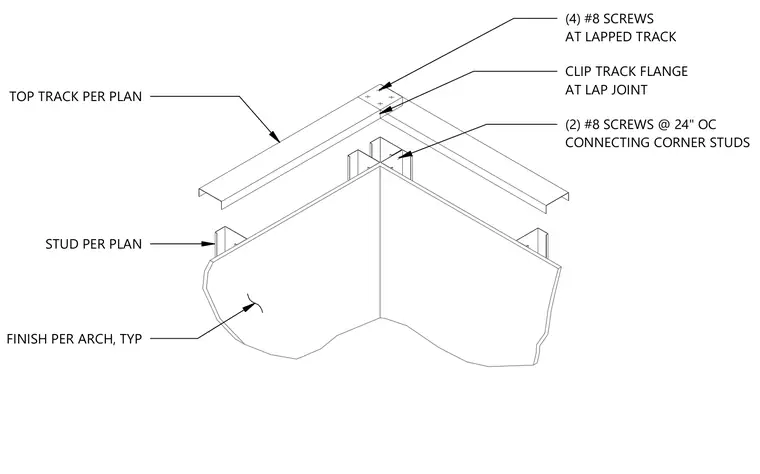

Cold-formed metal studs sized per plan terminate at a top track sized per plan with a lapped track joint at the corner. Two number eight screws at twenty-four inches on center connect the corner studs. Four number eight screws fasten the clip track flange at the lapped track joint. Interior finishes are installed per architectural drawings.
TOP TRACK PER PLAN STUD PER PLAN FINISH PER ARCH, TYP (2) #8 SCREWS @ 24" OC CONNECTING CORNER STUDS CLIP TRACK FLANGE AT LAP JOINT (4) #8 SCREWS AT LAPPED TRACK
