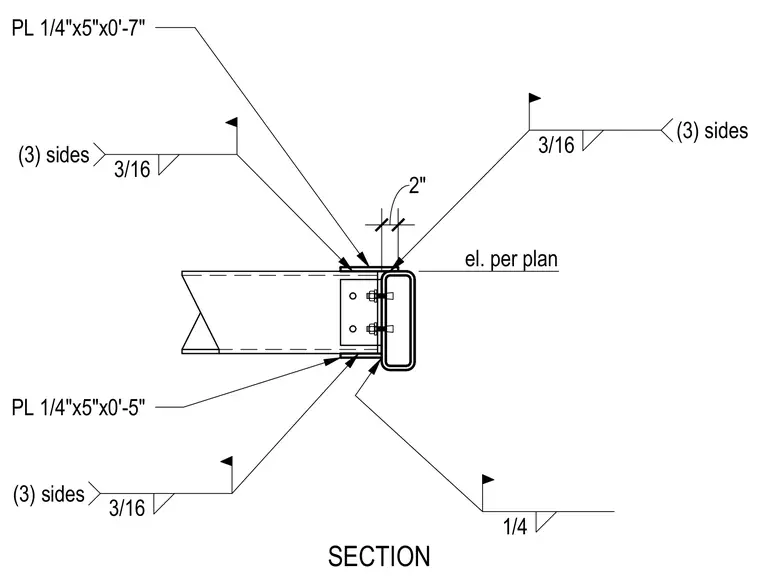

A steel framing connection uses a quarter-inch plate measuring five inches by zero feet seven inches and a quarter-inch plate measuring five inches by zero feet five inches welded to the structural members. Three-sixteenth-inch fillet welds are specified along three sides of the plate connections. A one-quarter-inch fillet weld secures the member to the hollow structural section column. A two-inch clearance and elevation per plan are maintained at the junction.
PL 1/4"x5"x0'-7" PL 1/4"x5"x0'-5" 3/16 (3) sides 3/16 (3) sides 3/16 (3) sides 1/4 el. per plan SECTION 2"
