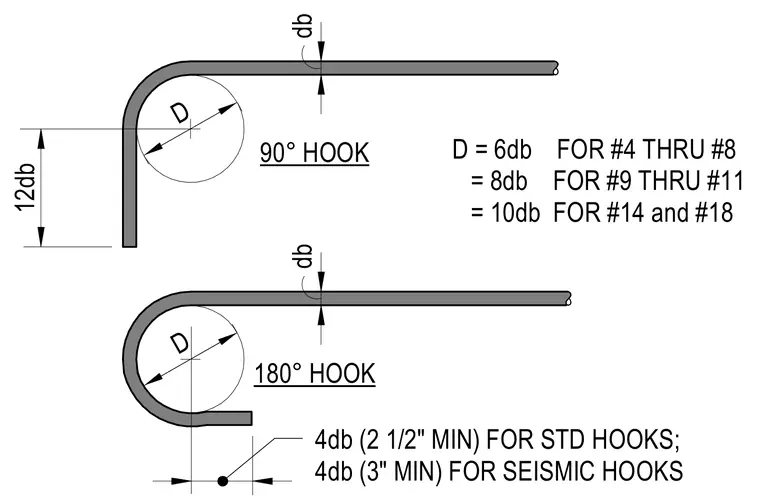

Reinforcing bar hooks are detailed with specific bend diameters and tail extensions based on bar size and seismic requirements. The 90-degree hook requires a bend diameter of six bar diameters for #4 through #8 bars, eight bar diameters for #9 through #11 bars, and ten bar diameters for #14 and #18 bars, along with a twelve bar diameter extension. The 180-degree hook includes a four bar diameter tail extension with a minimum of two and one-half inches for standard hooks or three inches for seismic hooks.
12db db 180° HOOK db 90° HOOK D = 6db FOR #4 THRU #8 = 8db FOR #9 THRU #11 = 10db FOR #14 and #18 D D 4db (2 1/2" MIN) FOR STD HOOKS; 4db (3" MIN) FOR SEISMIC HOOKS
