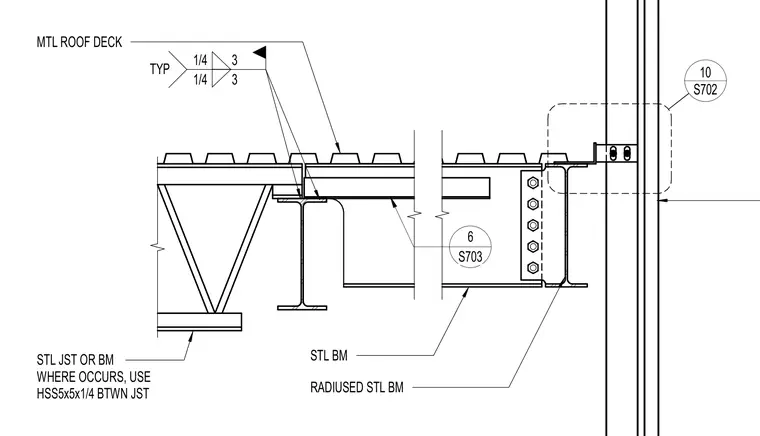

Metal roof deck bears across a radiused steel beam and steel joist assembly with one-quarter-inch fillet welds typically specified. A hollow structural section measuring 5x5x1/4 is included between joists where required. The assembly connects back to a vertical steel member using a bolted framing connection.
MTL ROOF DECK RADIUSED STL BM STL BM 6 S703 1/4 TYP 1/4 3 3 STL JST OR BM WHERE OCCURS, USE HSS5x5x1/4 BTWN JST S702 10
