Structural · S-JXYYJ

Louver Support Detail Between HSS Post

Materials

Steel

Elements

Columns Beams Arches

Connections

HSS Connection

About this detail

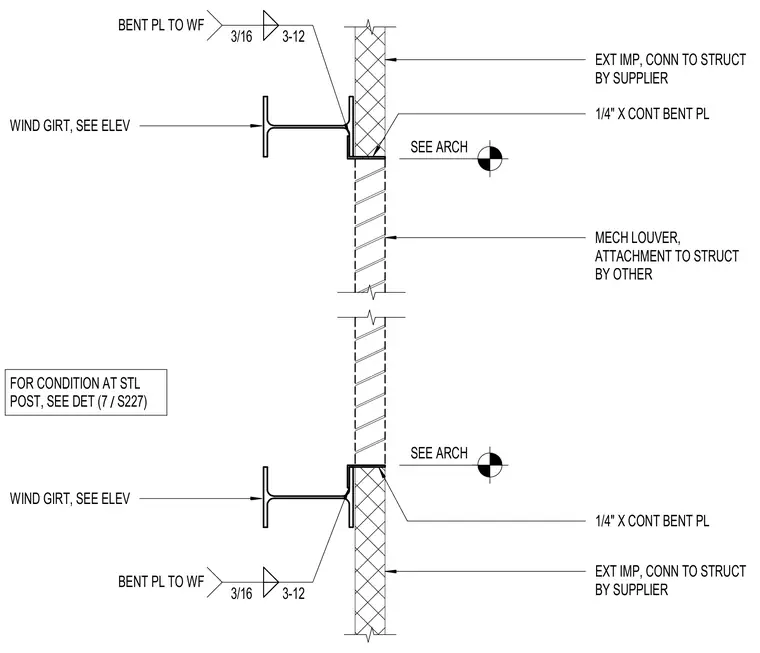

A structural attachment for a mechanical louver assembly spans between wide flange wind girts. A one-quarter-inch continuous bent plate welds to the wide flange beam web with a three-sixteenths-inch fillet weld spaced at twelve inches on center. Exterior insulated metal panels and mechanical louver assemblies connect back to this structural steel support framework. Additional conditions at the steel post require coordination with detail seven on sheet S227.
