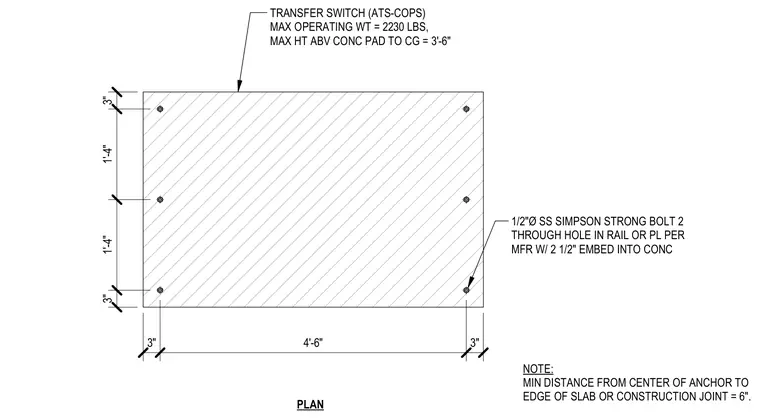

An electrical transfer switch with a maximum operating weight of 2,230 pounds and a center of gravity height of three feet six inches above the concrete pad is anchored using half-inch diameter stainless steel Simpson Strong-Bolt 2 expansion anchors passing through mounting holes in the rail or plate per manufacturer specifications with two and one-half inch embedment into the concrete. The minimum distance from the center of any anchor to the edge of the slab or construction joint is six inches. Dimensioned layout shows anchor spacings of three inches, one foot four inches, and four feet six inches.
3" 1'-4" 1'-4" 3" 3" 4'-6" 3" TRANSFER SWITCH (ATS-COPS) MAX OPERATING WT = 2230 LBS, MAX HT ABV CONC PAD TO CG = 3'-6" 1/2"Ø SS SIMPSON STRONG BOLT 2 THROUGH HOLE IN RAIL OR PL PER MFR W/ 2 1/2" EMBED INTO CONC NOTE: MIN DISTANCE FROM CENTER OF ANCHOR TO EDGE OF SLAB OR CONSTRUCTION JOINT = 6". PLAN
