Added tendons are grouped with continuous strands in the post-tensioned slab. Fixed-end anchorages are placed horizontally at the mid-depth of the slab, with anchorages staggered by twelve inches if more than two are present. Number 4 reinforcing bars are tied top and bottom to anchorages and extend six inches past the last anchor. Continuous tendon support bars and chairs maintain proper vertical alignment.

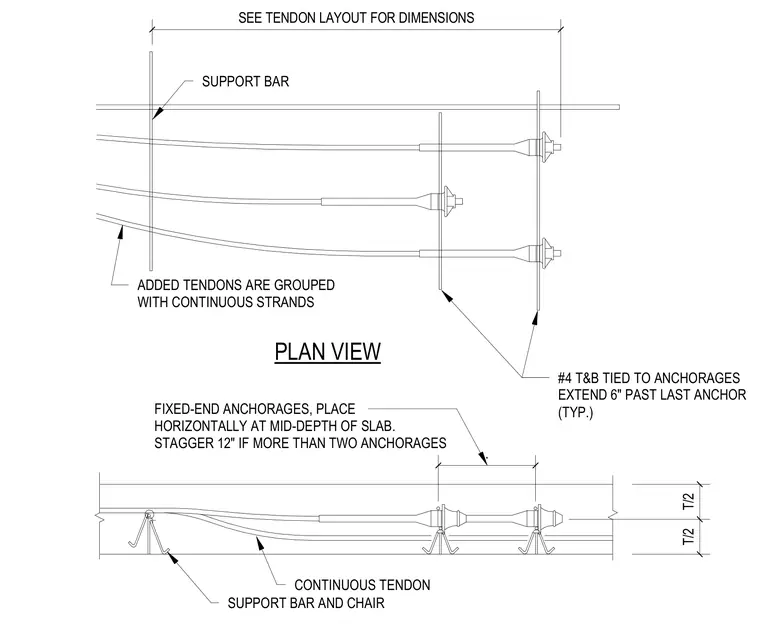

PLAN VIEW SEE TENDON LAYOUT FOR DIMENSIONS SUPPORT BAR ADDED TENDONS ARE GROUPED WITH CONTINUOUS STRANDS #4 T&B TIED TO ANCHORAGES EXTEND 6" PAST LAST ANCHOR (TYP.) T/2 T/2 . FIXED-END ANCHORAGES, PLACE HORIZONTALLY AT MID-DEPTH OF SLAB. STAGGER 12" IF MORE THAN TWO ANCHORAGES CONTINUOUS TENDON SUPPORT BAR AND CHAIR
