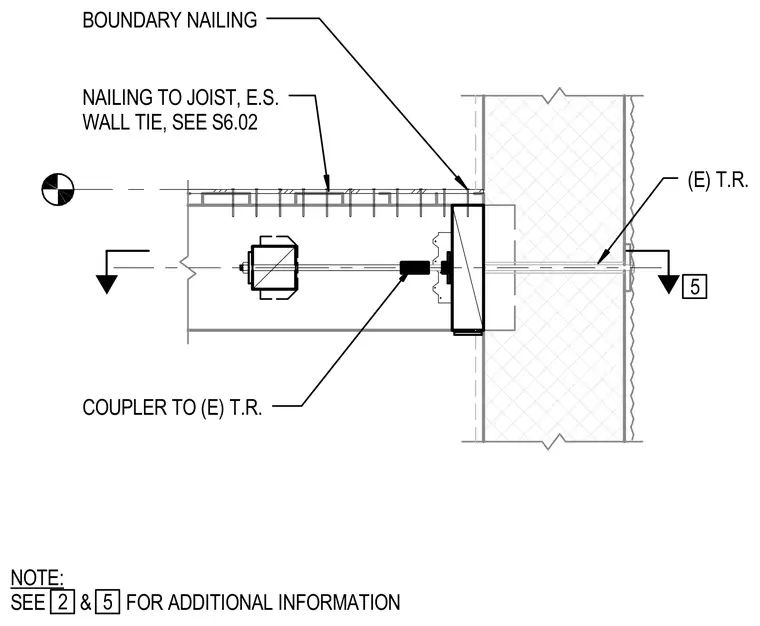

An existing unreinforced masonry wall connects to a floor or roof joist assembly using a wall tie and threaded rod anchor. A coupler joins the rod to an existing unreinforced masonry tie rod extending through the wall. Boundary nailing secures the joist framing at the wall interface per sheet S6.02.
COUPLER TO (E) T.R. BOUNDARY NAILING (E) T.R. NAILING TO JOIST, E.S. WALL TIE, SEE S6.02 NOTE: SEE & FOR ADDITIONAL INFORMATION 2 5 5
