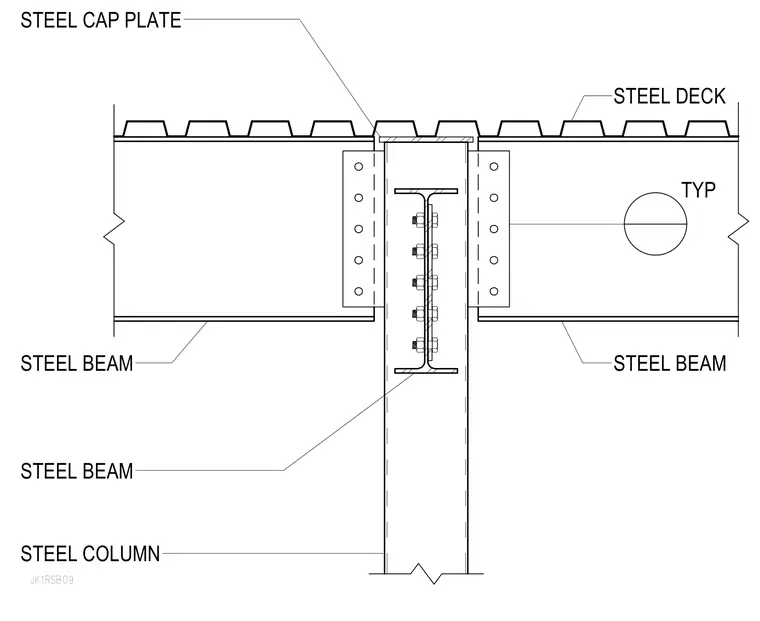

Framing conditions at a structural steel column support steel beams on opposite sides with bolted framing angles and a continuous steel cap plate. A metal corrugated steel deck spans across the top of the assembly above the column flange and beam top flanges. Shear tabs or double-angle connections secure the steel beams to the steel column web and flanges with standard bolt groups. The steel column extends downward while supporting the intersecting floor members.
JK1RSB09 STEEL CAP PLATE STEEL COLUMN STEEL DECK TYP STEEL BEAM STEEL BEAM STEEL BEAM
