The security camera mounts to building corners or walls using a dedicated corner bracket and wall mount assembly. Cameras are positioned at a standard height of nine feet unless noted otherwise in the video surveillance system schedule. Electrical routing utilizes a three-quarter-inch liquid tight flexible metal conduit connected to a weatherproof bell box. Conduit continues from the bell box to the nearest accessible ceiling.

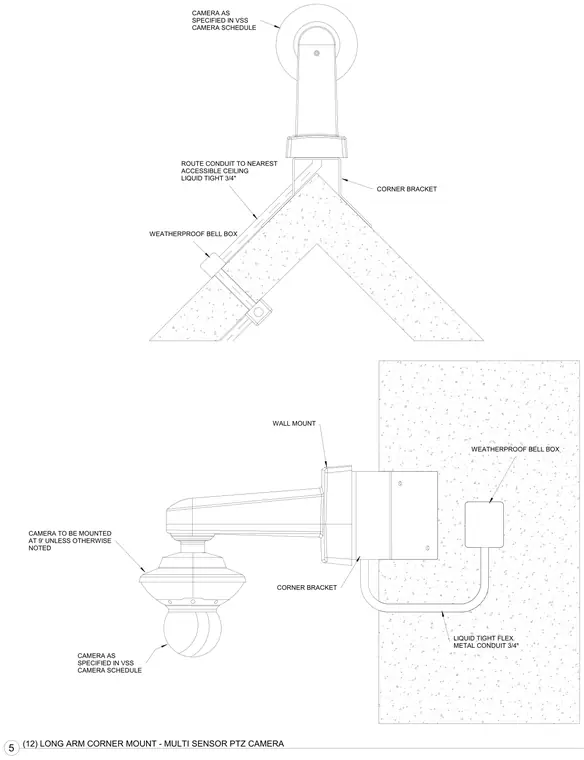

CAMERA TO BE MOUNTED AT 9' UNLESS OTHERWISE NOTED WALL MOUNT CAMERA AS SPECIFIED IN VSS CAMERA SCHEDULE CORNER BRACKET ROUTE CONDUIT TO NEAREST ACCESSIBLE CEILING LIQUID TIGHT 3/4" WEATHERPROOF BELL BOX CAMERA AS SPECIFIED IN VSS CAMERA SCHEDULE CORNER BRACKET WEATHERPROOF BELL BOX LIQUID TIGHT FLEX METAL CONDUIT 3/4" (12) LONG ARM CORNER MOUNT - MULTI SENSOR PTZ CAMERA 5
