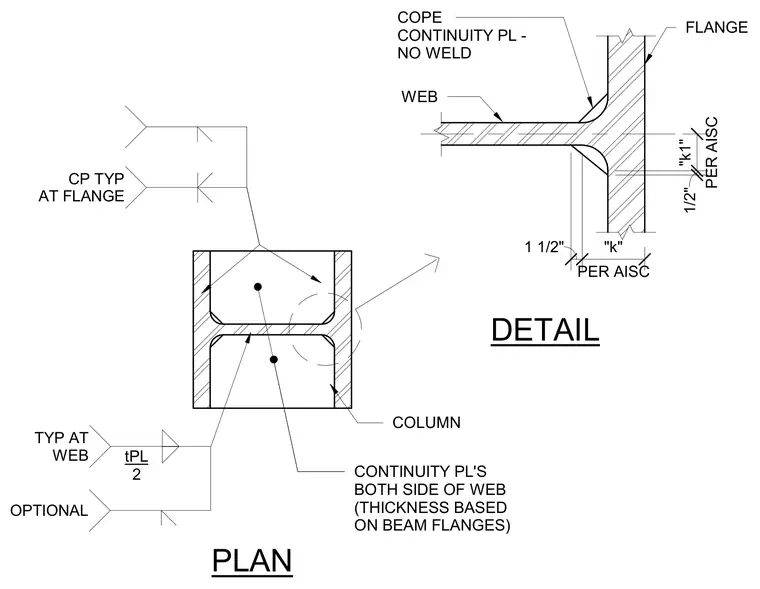

Continuity plates are welded to both sides of a steel column web with thicknesses based on the connected beam flanges. A cope is provided at the continuity plate with no weld, leaving a one-half-inch clearance per AISC dimension k1, and one-and-a-half-inch clearance per AISC dimension k. Additional optional welds are specified typically at the web and flange connections.
DETAIL PLAN COLUMN WEB FLANGE COPE CONTINUITY PL - NO WELD 1/2" PER AISC "k1" 1 1/2" PER AISC "k" CONTINUITY PL'S BOTH SIDE OF WEB (THICKNESS BASED ON BEAM FLANGES) OPTIONAL TYP AT WEB tPL 2 CP TYP AT FLANGE
