Structural · S-JX6SX

Infill Beam Framing and Deck Support Connection Detail

Materials

Steel

Elements

Beams Decks Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

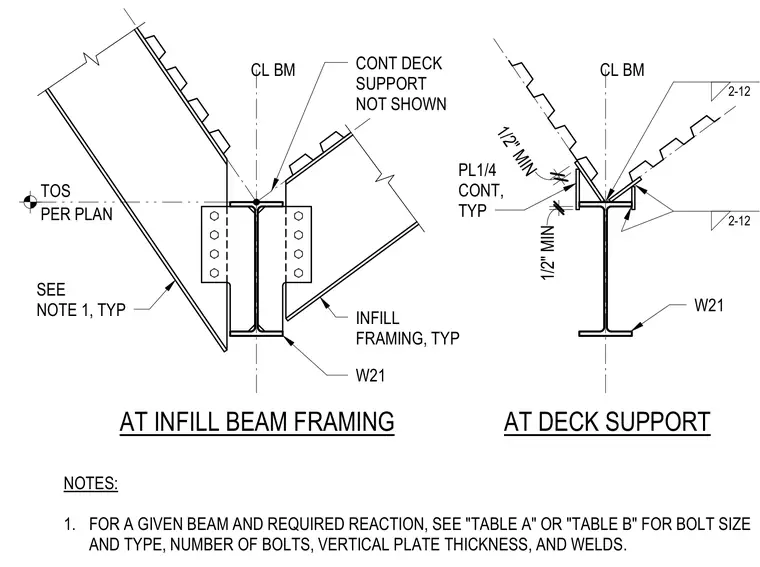

An infill framing and deck support detail at a W21 steel beam features continuous one-quarter-inch plates and welded or bolted connections sized per structural tables. Infill framing members connect to the supporting beam with vertical connection plates utilizing specified bolt sizes and quantities. Continuous deck support angles or plates attach along the top flange with fillet welds. The top of steel elevation is located per plan.
