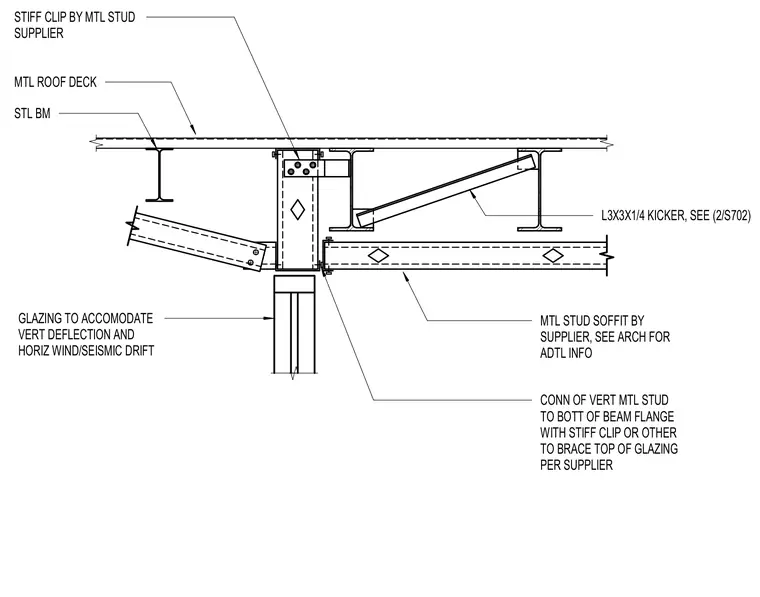

A metal roof deck bears on steel beams supporting an overhead framing assembly with a stiff clip connection by the metal stud supplier. A structural steel angle kicker with dimensions of L3x3x1/4 provides lateral bracing back to the framing. The vertical metal stud connects to the bottom of the steel beam flange using a stiff clip to brace the top of the glazing system. The glazing assembly accommodates vertical deflection and horizontal wind and seismic drift.
GLAZING TO ACCOMODATE VERT DEFLECTION AND HORIZ WIND/SEISMIC DRIFT MTL ROOF DECK STL BM STIFF CLIP BY MTL STUD SUPPLIER MTL STUD SOFFIT BY SUPPLIER, SEE ARCH FOR ADTL INFO L3X3X1/4 KICKER, SEE (2/S702) CONN OF VERT MTL STUD TO BOTT OF BEAM FLANGE WITH STIFF CLIP OR OTHER TO BRACE TOP OF GLAZING PER SUPPLIER
