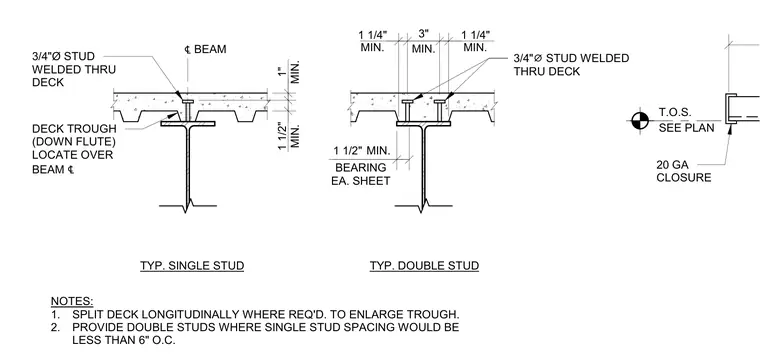

Composite metal deck bears perpendicularly on a supporting steel beam with a minimum one and one-half inch bearing length for each sheet. Three-quarter-inch diameter shear studs are welded through the metal deck into the beam flange, positioned in the down flute centered over the beam. Single and double stud configurations maintain specified minimum edge distances, spacings, and clearances. A twenty-gauge closure is provided at the edge as sized per plan. Longitudinal deck splitting is required where necessary to enlarge the trough, and double studs are specified when single stud spacing drops below six inches on center.
T.O.S. SEE PLAN 20 GA CLOSURE TYP. SINGLE STUD TYP. DOUBLE STUD NOTES: 1. SPLIT DECK LONGITUDINALLY WHERE REQ'D. TO ENLARGE TROUGH. 2. PROVIDE DOUBLE STUDS WHERE SINGLE STUD SPACING WOULD BE LESS THAN 6" O.C. ℄ BEAM 3/4"Ø STUD WELDED THRU DECK DECK TROUGH (DOWN FLUTE) LOCATE OVER BEAM ℄ MIN. 1 1/2" MIN. 1" MIN. 1 1/4" MIN. 3" MIN. 1 1/4" BEARING EA. SHEET 3/4" ⌀ STUD WELDED THRU DECK MIN. 1 1/2"
