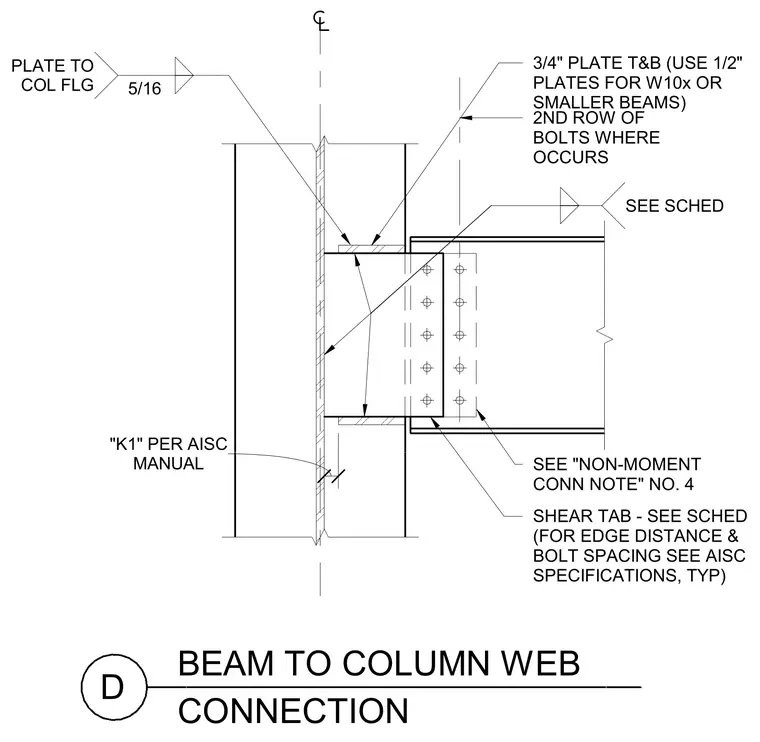

A steel beam connects to the web of a column using a shear tab and top and bottom plates. Three-quarter-inch plates are used at the top and bottom, with one-half-inch plates specified for W10x or smaller beams. A five-sixteenth-inch fillet weld connects the plate to the column flange. Edge distances and bolt spacings follow AISC specifications, incorporating a second row of bolts where applicable.
BEAM TO COLUMN WEB D CONNECTION SHEAR TAB - SEE SCHED (FOR EDGE DISTANCE & BOLT SPACING SEE AISC SPECIFICATIONS, TYP) SEE "NON-MOMENT CONN NOTE" NO. 4 3/4" PLATE T&B (USE 1/2" PLATES FOR W10x OR SMALLER BEAMS) SEE SCHED 5/16 PLATE TO COL FLG MANUAL "K1" PER AISC 2ND ROW OF BOLTS WHERE OCCURS
