Structural · S-JWJK4

Beam to Rigid Frame Column

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Moment Connection Shear Tab / Single Plate Beam-to-Beam Bolted Connection Expansion / Slip Connection

About this detail

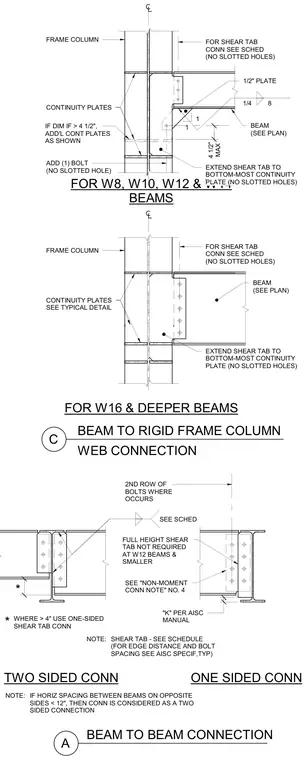

Structural steel connections include beam-to-rigid frame column web connections and beam-to-beam framing configurations. The frame column detail shows continuity plates aligned with the beam flanges, extended shear tabs reaching the bottom-most continuity plate, and a one-half inch plate with specified bolt configurations. For W8 through W14 beams, additional continuity plates are required when the dimension exceeds four and one-half inches. W16 and deeper beams utilize standard continuity plate layouts per typical details. Beam-to-beam connections feature both one-sided and two-sided shear tab configurations, with specific edge distances, bolt spacings, and AISC manual compliance notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
