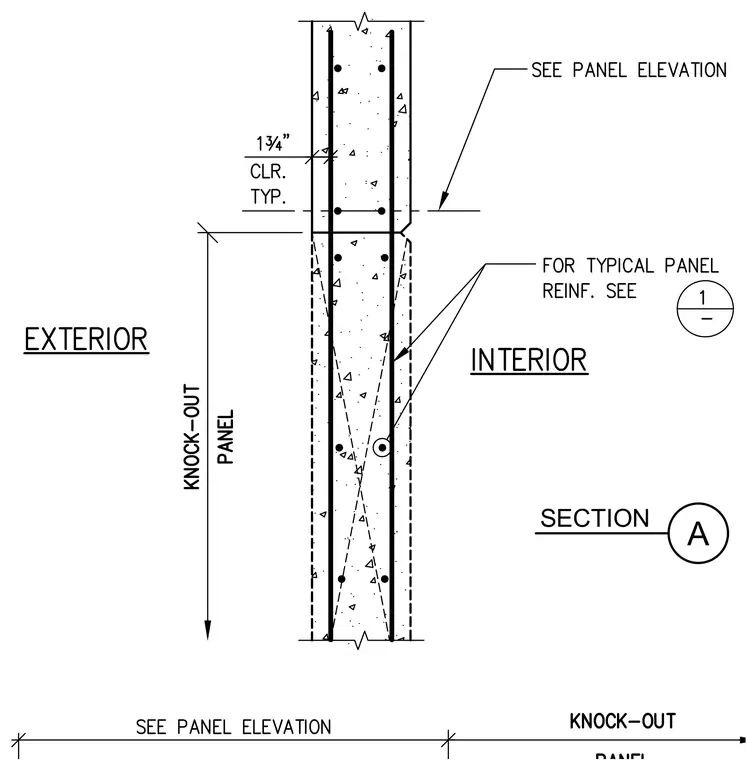

This structural detail shows a vertical section through a precast concrete wall featuring a designated knock-out panel. Vertical reinforcing steel bars run continuously through the concrete section, maintaining a typical 1 3/4-inch clearance to the face. The drawing references the exterior and interior sides, indicating specific panel elevations and typical reinforcement details on separate sheets.
