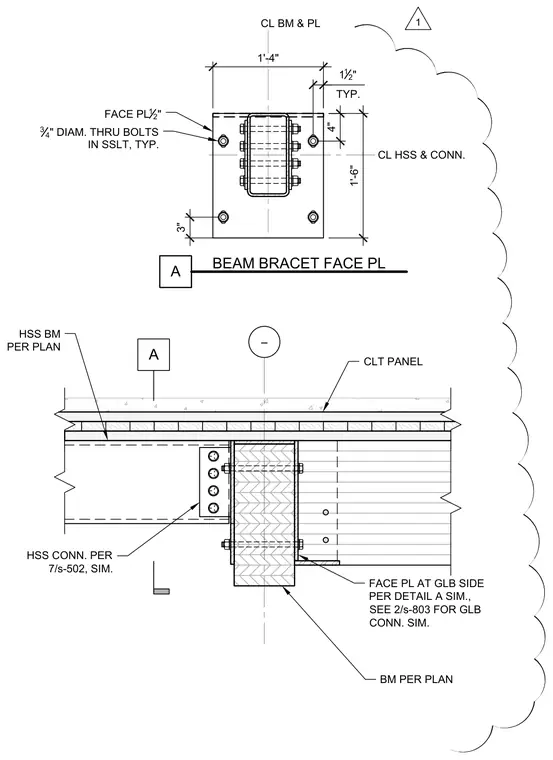

A hollow structural section beam is connected to a cross-laminated timber panel and timber beam assembly using a steel face plate and through bolts. Three-quarter-inch diameter through bolts secure the timber and beam through slotted holes in the face plate. A separate hollow structural section connection secures the steel beam per plan.
HSS BM PER PLAN CLT PANEL BM PER PLAN FACE PL AT GLB SIDE PER DETAIL A SIM., SEE 2/s-803 FOR GLB CONN. SIM. 1'-4" 1'-6" 3" FACE PL 1 2 " _ 1 1 2 " TYP. CL BM & PL CL HSS & CONN. HSS CONN. PER 7/s-502, SIM. 4" A BEAM BRACET FACE PL A 3 4 " DIAM. THRU BOLTS IN SSLT, TYP. 1
