Structural · S-JWGKX

Top View

Materials

Elements

About this detail

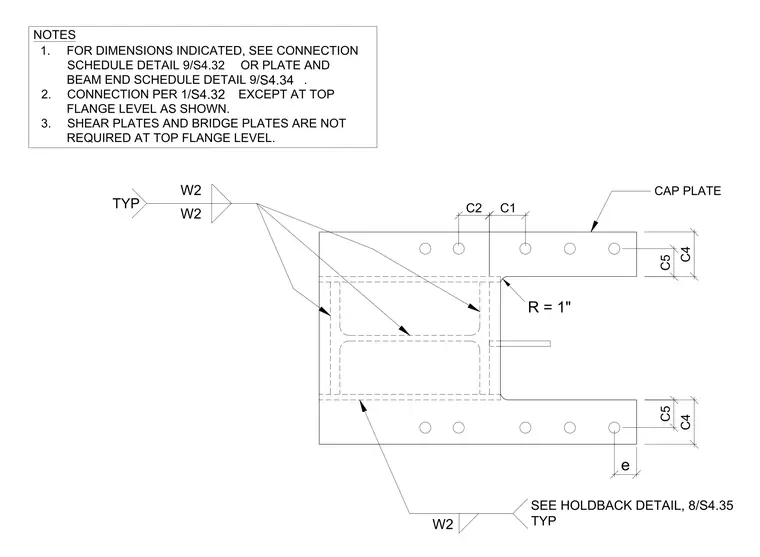

A top view structural detail of a steel beam connection with a cap plate welded using typical weld size W2. Dimensions C1, C2, C4, C5, and edge distance e govern the bolt hole layout on the extended plate. Shear plates and bridge plates are omitted at the top flange level per drawing notes. Referenced details include the connection schedule, plate and beam end schedule, and holdback detail.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
