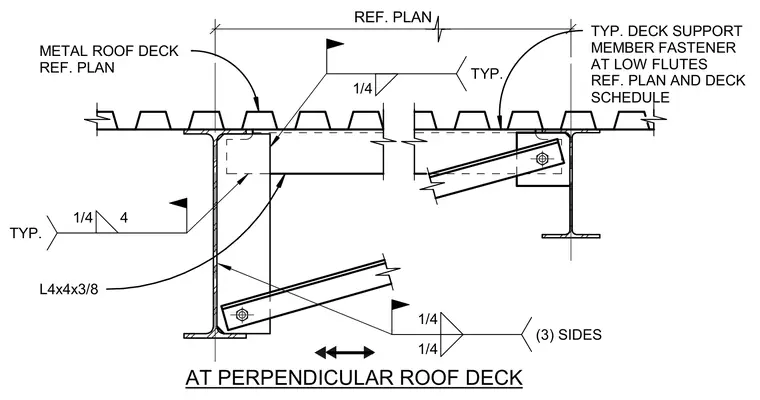

A metal roof deck bears across structural support members with deck fasteners located at the low flutes per the deck schedule. An L4x4x3/8 angle frames between members with bolted and welded connections. Fillet welds of one-quarter inch size are specified typically on three sides for connection plates and framing members.
METAL ROOF DECK REF. PLAN REF. PLAN AT PERPENDICULAR ROOF DECK 1/4 1/4 (3) SIDES 1/4 TYP. TYP. DECK SUPPORT MEMBER FASTENER AT LOW FLUTES REF. PLAN AND DECK SCHEDULE 1/4 4 TYP. L4x4x3/8
