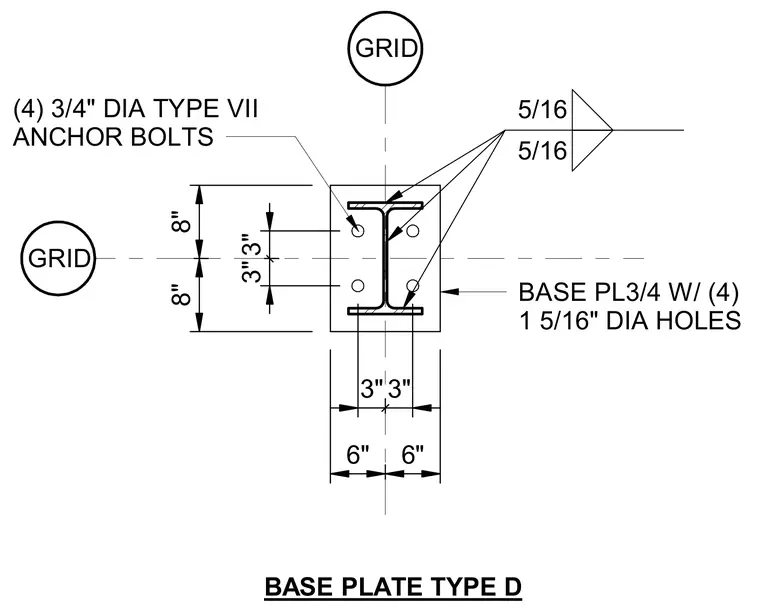

A structural steel column base plate plan detail showing a three-quarter-inch thick base plate with four one-and-five-sixteenth-inch diameter holes centered on column grid lines. Four three-quarter-inch diameter Type VII anchor bolts secure the assembly. Five-sixteenth-inch fillet welds connect the column profile to the base plate.
GRID 6" 6" 8" 8" (4) 3/4" DIA TYPE VII ANCHOR BOLTS BASE PL3/4 W/ (4) 1 5/16" DIA HOLES 5/16 5/16 GRID BASE PLATE TYPE D 3" 3" 3" 3"
