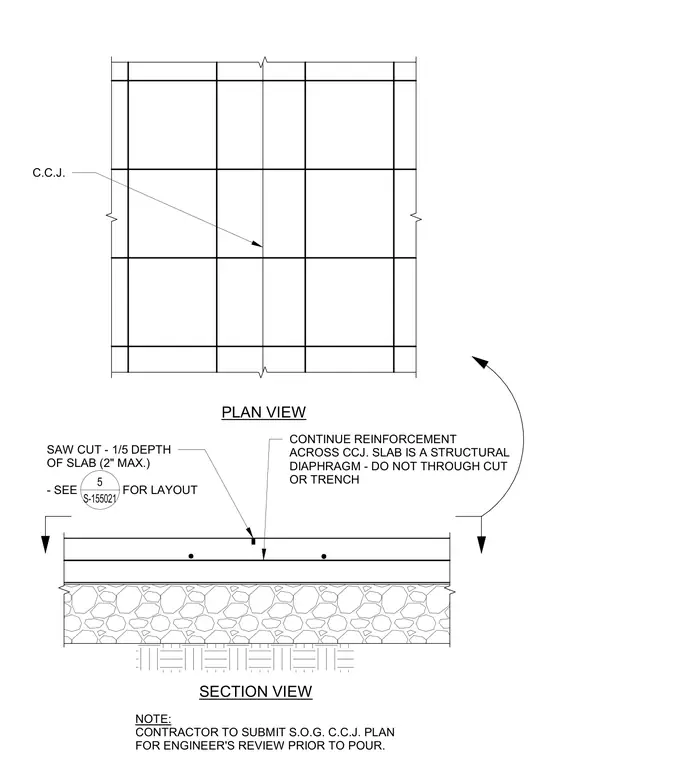

A crack control joint in a slab on grade with both plan and section views. The top saw cut is formed to one-fifth of the slab depth with a maximum of two inches. Reinforcement continues uninterrupted across the control joint. The slab functions as a structural diaphragm and must not be through cut or trenched at the control joint location. The contractor must submit a slab on grade crack control joint plan for engineer review prior to pouring concrete.
SAW CUT - 1/5 DEPTH OF SLAB (2" MAX.) - SEE FOR LAYOUT CONTINUE REINFORCEMENT ACROSS CCJ. SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH C.C.J. SECTION VIEW PLAN VIEW NOTE: CONTRACTOR TO SUBMIT S.O.G. C.C.J. PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR. 5 S-155021
