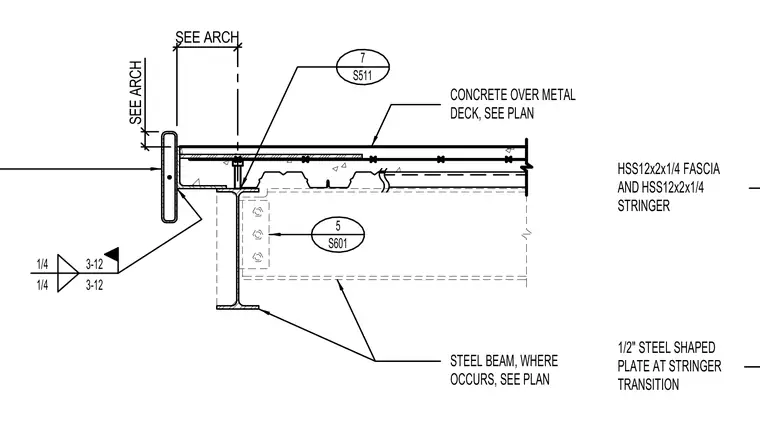

A concrete slab over a metal deck bears on a structural steel beam, with the extent and layout sized per plan. An HSS 12x2x1/4 fascia and stringer assembly ties into the edge condition alongside a one-half-inch steel shaped plate located at the stringer transition. Connection details reference sheet S601 for structural connections and sheet S511 for deck attachment.
STEEL BEAM, WHERE CONCRETE OVER METAL DECK, SEE PLAN 1/4 3-12 1/4 3-12 OCCURS, SEE PLAN HSS12x2x1/4 FASCIA AND HSS12x2x1/4 STRINGER 1/2" STEEL SHAPED PLATE AT STRINGER TRANSITION 5 S601 7 S511 SEE ARCH SEE ARCH
