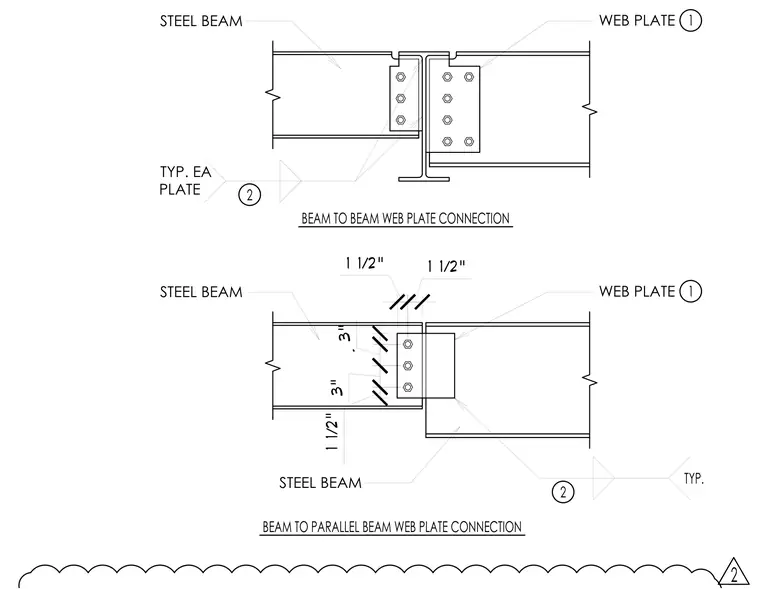

Steel beams connect to a parallel supporting beam using bolted web plates. Each connection utilizes web plates secured with high-strength steel bolts spaced per the drawing dimensions. The layout shows typical edge distances and bolt spacings for the structural steel members.
BEAM TO PARALLEL BEAM WEB PLATE CONNECTION STEEL BEAM 2 TYP. STEEL BEAM TYP. EA PLATE 2 STEEL BEAM BEAM TO BEAM WEB PLATE CONNECTION WEB PLATE 1 WEB PLATE 1 2
