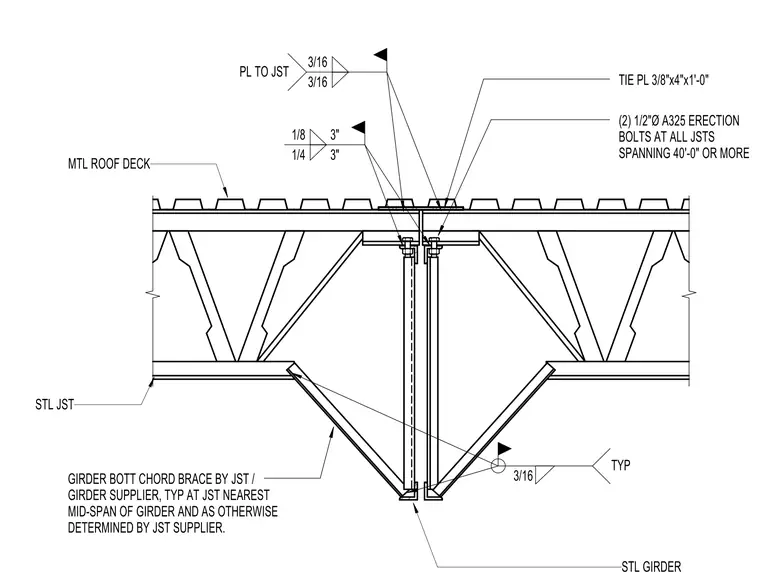

Steel joists are tied together below a metal roof deck using a three-eighths-inch by four-inch by one-foot-zero-inch tie plate welded with three-sixteenths-inch fillet welds. Two half-inch-diameter A325 erection bolts are provided at all joists spanning forty feet or more. A bottom chord brace is detailed for the steel girder, positioned typically at the joist nearest mid-span of the girder and as otherwise determined by the joist supplier.
GIRDER BOTT CHORD BRACE BY JST / GIRDER SUPPLIER, TYP AT JST NEAREST MID-SPAN OF GIRDER AND AS OTHERWISE DETERMINED BY JST SUPPLIER. STL GIRDER MTL ROOF DECK TYP 3/16 STL JST 1/8 1/4 3" 3" (2) 1/2"Ø A325 ERECTION BOLTS AT ALL JSTS SPANNING 40'-0" OR MORE 3/16 PL TO JST 3/16 TIE PL 3/8"x4"x1'-0"
