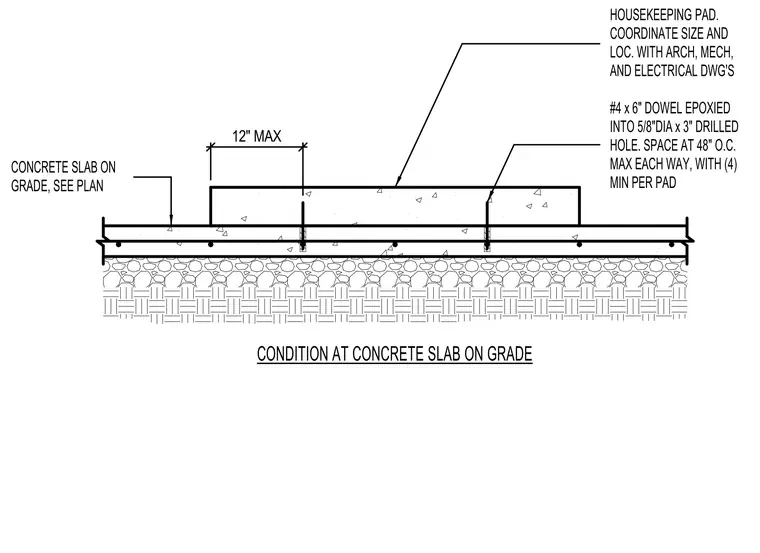

A concrete housekeeping pad is supported by a concrete slab on grade. The housekeeping pad is anchored using number four by six inch dowels epoxied into five-eighths inch diameter by three inch drilled holes spaced at forty-eight inches on center maximum each way, with a minimum of four dowels per pad. The concrete slab on grade is sized per plan.
CONDITION AT CONCRETE SLAB ON GRADE HOUSEKEEPING PAD. COORDINATE SIZE AND LOC. WITH ARCH, MECH, AND ELECTRICAL DWG'S #4 x 6" DOWEL EPOXIED INTO 5/8"DIA x 3" DRILLED HOLE. SPACE AT 48" O.C. CONCRETE SLAB ON GRADE, SEE PLAN MAX EACH WAY, WITH (4) MIN PER PAD 12" MAX
