Concrete Wall Expansion Joint at Concrete Column

Materials

Concrete Reinforced Concrete

Elements

Columns Walls Expansion / Control Joints Reinforcing

Connections

Expansion / Slip Connection

About this detail

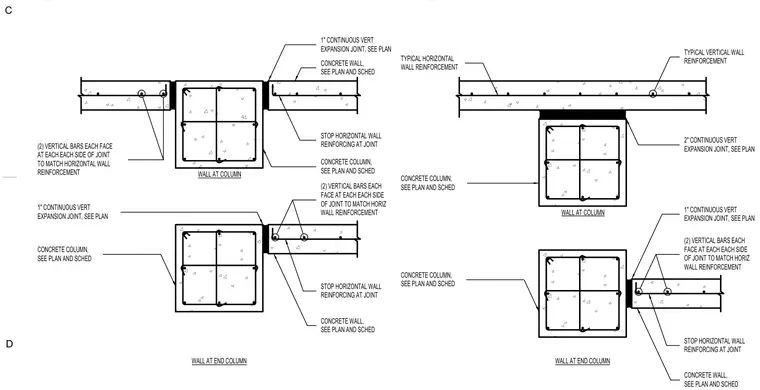

A continuous vertical expansion joint is located between reinforced concrete walls and concrete columns, sized per plan at one or two inches. Horizontal wall reinforcing bars terminate at the joint while two vertical bars are provided on each face at each side of the joint to match the horizontal wall reinforcement. Typical horizontal and vertical wall reinforcement continues throughout the remaining concrete wall assembly. Concrete columns and walls are sized per plan and schedule.
