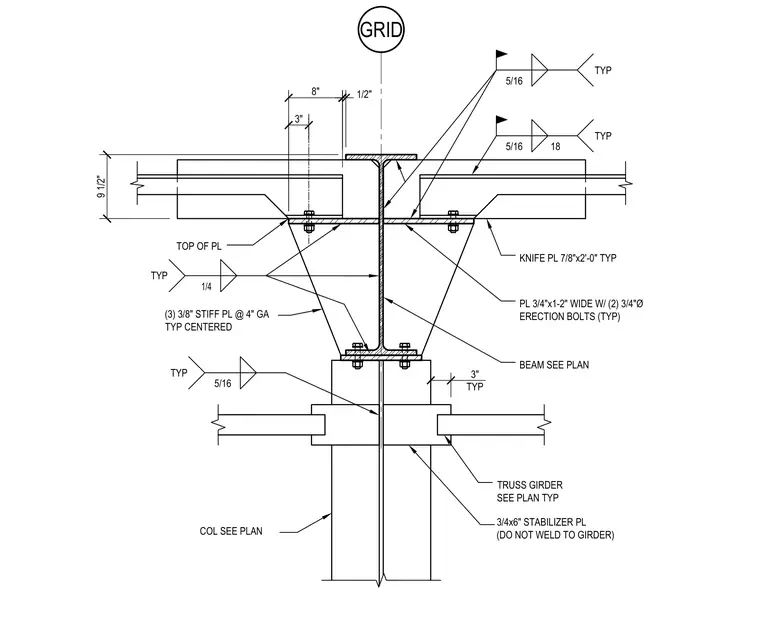

A structural steel connection joins a truss girder and beams to a column with a knife plate measuring 7/8 inches by 2 feet zero inches typical. Three 3/8-inch stiffener plates at 4-inch gauge are typically centered along the assembly. A 3/4-inch by 1-foot 2-inch plate includes two 3/4-inch diameter erection bolts typical. A 3/4-inch by 6-inch stabilizer plate is left unwelded to the girder. Fillet welds of 5/16-inch and 1/4-inch sizes secure the connection components as indicated.
9 1/2" 3" COL SEE PLAN TRUSS GIRDER SEE PLAN TYP BEAM SEE PLAN (3) 3/8" STIFF PL @ 4" GA TYP CENTERED 5/16 TYP GRID 5/16 18 TYP KNIFE PL 7/8"x2'-0" TYP 1/4 TYP 5/16 TYP 8" 1/2" PL 3/4"x1-2" WIDE W/ (2) 3/4"Ø ERECTION BOLTS (TYP) 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) TOP OF PL 3" TYP
