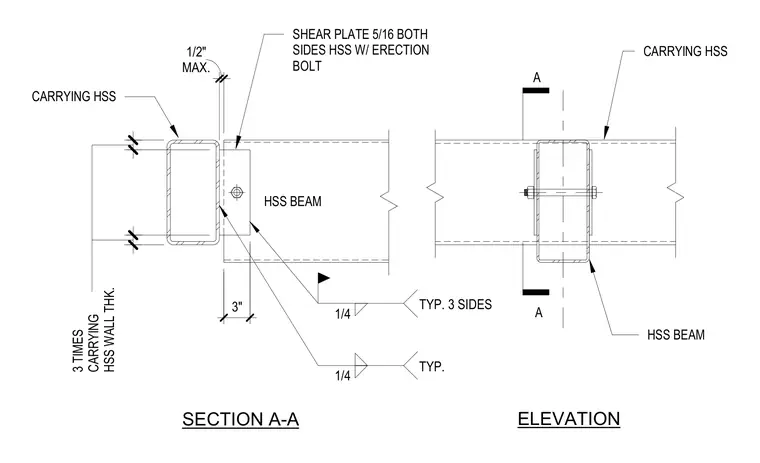

An HSS beam connects to a carrying hollow structural section member using a five-sixteenths inch shear plate welded to the carrying member with a one-quarter inch fillet weld on three sides. The connection is secured with an erection bolt through the web and shear plate. A maximum one-half inch clearance is maintained between the framing members, with the plate set back three inches. A companion elevation shows the framing layout and section cut.
CARRYING HSS HSS BEAM SHEAR PLATE 5/16 BOTH SIDES HSS W/ ERECTION BOLT CARRYING HSS HSS BEAM 3 TIMES CARRYING HSS WALL THK. A A SECTION A-A ELEVATION 1/4 TYP. 3 SIDES 1/4 TYP. 3" MAX. 1/2"
