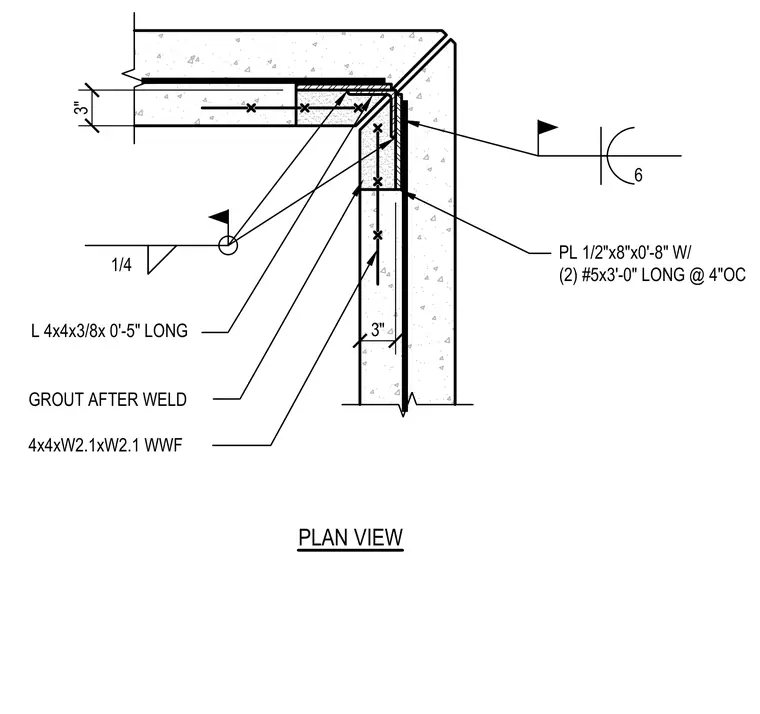

Precast concrete wall panels meet at a 90-degree corner, joined by a structural steel angle measuring 4x4x3/8 by 0'-5" long. A one-quarter inch fillet weld secures the assembly. An embedded plate measuring 1/2"x8"x0'-8" includes two number 5 reinforcing bars at 3 feet long spaced at 4 inches on center. Welded wire reinforcement of 4x4-W2.1xW2.1 WWF is integrated into the panel. Grout is placed after welding is complete.
3" 3" 1/4 L 4x4x3/8x 0'-5" LONG 4x4xW2.1xW2.1 WWF GROUT AFTER WELD 6 PL 1/2"x8"x0'-8" W/ (2) #5x3'-0" LONG @ 4"OC PLAN VIEW
