An HSS6x6 post supports an HSS5x5x5/16 outrigger fitted with a three-eighths-inch end plate, welded with three-sixteenths-inch fillet welds on three sides. An L3x3x3/8-by-three-inch angle, centered on the girt, connects to an HSS5x5 girt sized per plan. A three-eighths-inch by three-inch by zero-foot-six-inch plate is centered on the girt. Field conditions show a half-inch gap between structural elements.

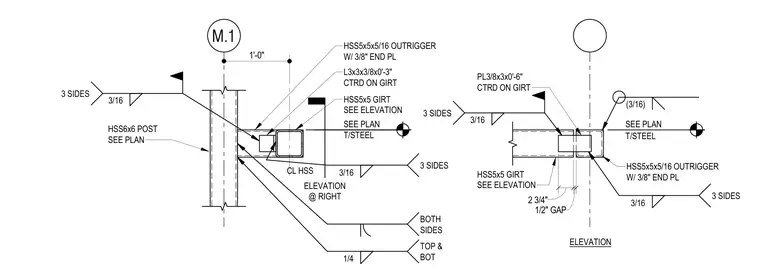

1'-0" L3x3x3/8x0'-3" CTRD ON GIRT HSS5x5 GIRT SEE ELEVATION ELEVATION @ RIGHT HSS5x5x5/16 OUTRIGGER W/ 3/8" END PL HSS6x6 POST SEE PLAN 3/16 3 SIDES BOTH SIDES 1/4 TOP & BOT 3/16 3 SIDES M.1 CL HSS (3/16) 3/16 3 SIDES 3/16 3 SIDES T/STEEL SEE PLAN PL3/8x3x0'-6" CTRD ON GIRT HSS5x5 GIRT SEE ELEVATION 2 3/4" 1/2" GAP HSS5x5x5/16 OUTRIGGER W/ 3/8" END PL SEE PLAN T/STEEL ELEVATION
