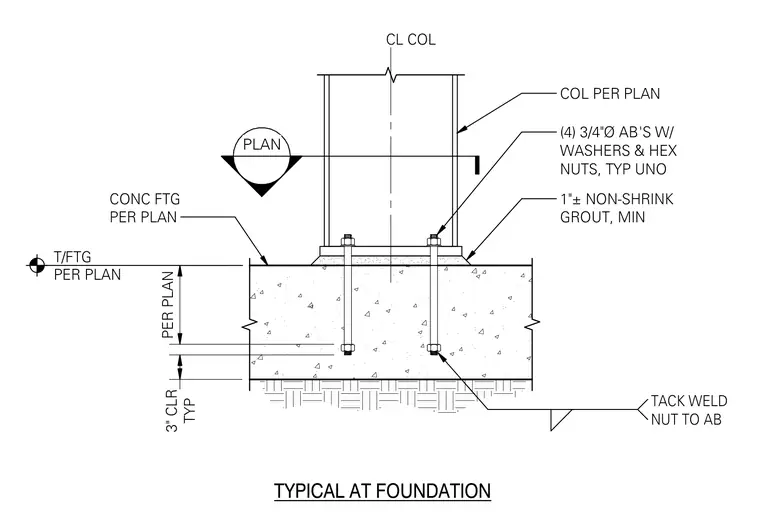

A wide flange steel column bears on a baseplate anchored to a concrete footing. The assembly is secured by four three-quarter-inch diameter anchor bolts complete with washers and hex nuts, with the nuts tack welded to the anchor bolts. A one-inch plus or minus layer of non-shrink grout fills the space beneath the baseplate. The concrete footing provides a typical three-inch clearance to the reinforcement.
PLAN COL PER PLAN (4) 3/4"Ø AB'S W/ WASHERS & HEX NUTS, TYP UNO 1"± NON-SHRINK GROUT, MIN CONC FTG PER PLAN PER PLAN TYP 3" CLR CL COL TYPICAL AT FOUNDATION TACK WELD NUT TO AB T/FTG PER PLAN ■V 0 1 iB T 4 A 4 4 d 4 4 <> 0 4 4 \ ~ 4 <7 ' I < F
