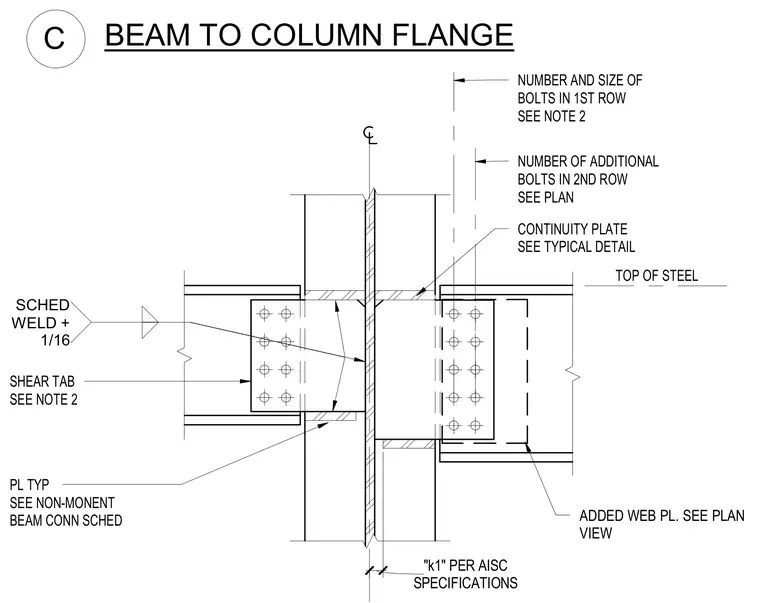

A steel framing connection detail showing a steel beam intersecting a structural steel column flange. The beam web connects via a shear tab welded to the column flange and bolted to the beam web, with bolt sizes and counts sized per the structural schedule and plan. Additional web plates and continuity plates are provided per standard details and AISC specifications. Fillet welds attach the shear tab to the column flange, sized per schedule with a one-sixteenth inch addition. Clearances and "k1" dimensions adhere strictly to AISC specifications.
SHEAR TAB SEE NOTE 2 TOP OF STEEL BEAM TO COLUMN FLANGE C SCHED WELD + 1/16 SPECIFICATIONS "k1" PER AISC NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN CONTINUITY PLATE SEE TYPICAL DETAIL PL TYP SEE NON-MONENT BEAM CONN SCHED ADDED WEB PL. SEE PLAN VIEW
