Structural · S-JTY5P

Precast Panel Connection Repair Detail

Materials

Concrete Steel

Elements

Beams Walls Site / Paving Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

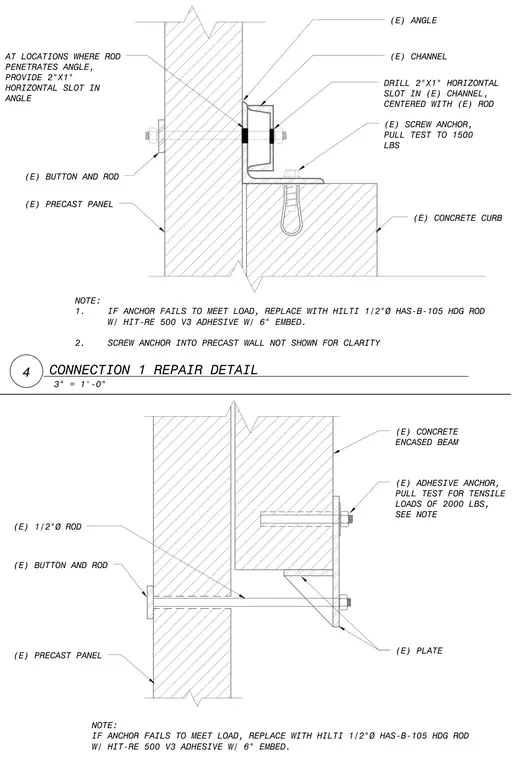

An existing precast concrete panel connects to a concrete curb or concrete-encased beam via an existing steel angle, channel, and a half-inch diameter threaded rod with a button head anchoring through the precast panel. An existing screw anchor secures the structural angle to the concrete curb, requiring a pull test to fifteen hundred pounds. Where the rod penetrates the angle and channel, a two-inch by one-inch horizontal slot is provided to accommodate movement. If any existing anchor fails to meet required loads, it must be replaced with a half-inch diameter Hilti HAS-B-105 hot-dip galvanized rod installed with HIT-RE 500 V3 adhesive and a six-inch embedment.
