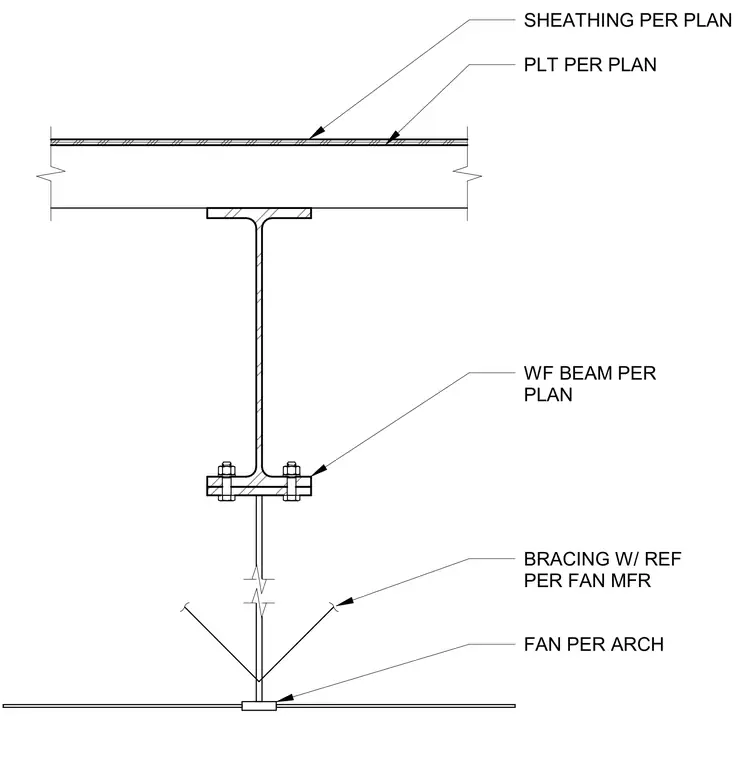

A wide flange beam supports a mechanical fan assembly, with the beam top flange carrying a plate and sheathing as specified per plan. The fan unit is suspended below the beam via a vertical member connected to the beam's bottom flange using a bolted connection. Bracing is provided for the fan assembly, with the specific configuration and reference requirements determined by the fan manufacturer. The fan unit itself is installed according to the architectural drawings.
