A Unistrut P1000 channel measuring one foot eight inches is fastened to the low deck flute of a concrete fill metal deck using two three-eighths-inch Hilti KBTZ anchors with three-and-a-quarter-inch embedment. Fastener SPF-401 secures to the Unistrut using a one-half-inch diameter channel nut typically. Structural steel beams sized per plan support a P5000 Unistrut channel attached via P2786 Unistrut beam clamps. A P1000T Unistrut member with cradle clips spaced at twelve inches supports the lighting pipe using a J1220 Unistrut pipe hanger or equivalent, connected via a one-half-inch threaded rod at pipe ends spanning a maximum of eight feet. Three-sixteenths-inch diameter seven-by-nineteen aircraft cables with SPF-401 fittings at each end brace the assembly diagonally back to the deck-mounted Unistrut anchors and are installed hand taut with no slack.

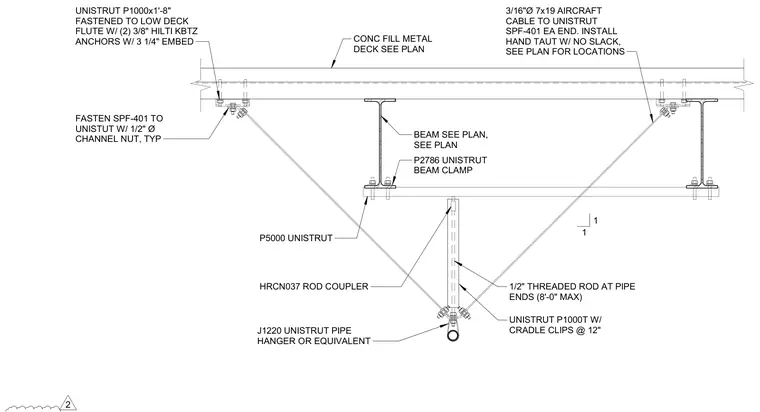

UNISTRUT P1000x1'-8" FASTENED TO LOW DECK FLUTE W/ (2) 3/8" HILTI KBTZ ANCHORS W/ 3 1/4" EMBED FASTEN SPF-401 TO UNISTUT W/ 1/2" Ø CHANNEL NUT, TYP BEAM SEE PLAN, SEE PLAN P2786 UNISTRUT BEAM CLAMP P5000 UNISTRUT HRCN037 ROD COUPLER J1220 UNISTRUT PIPE HANGER OR EQUIVALENT CONC FILL METAL DECK SEE PLAN 3/16"Ø 7x19 AIRCRAFT CABLE TO UNISTRUT SPF-401 EA END. INSTALL HAND TAUT W/ NO SLACK, SEE PLAN FOR LOCATIONS 1/2" THREADED ROD AT PIPE ENDS (8'-0" MAX) 1 1 UNISTRUT P1000T W/ CRADLE CLIPS @ 12" 2
