Structural · S-JTBXC

Single Sided Beam to Beam Connection

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Beam-to-Beam Bracing Connection

About this detail

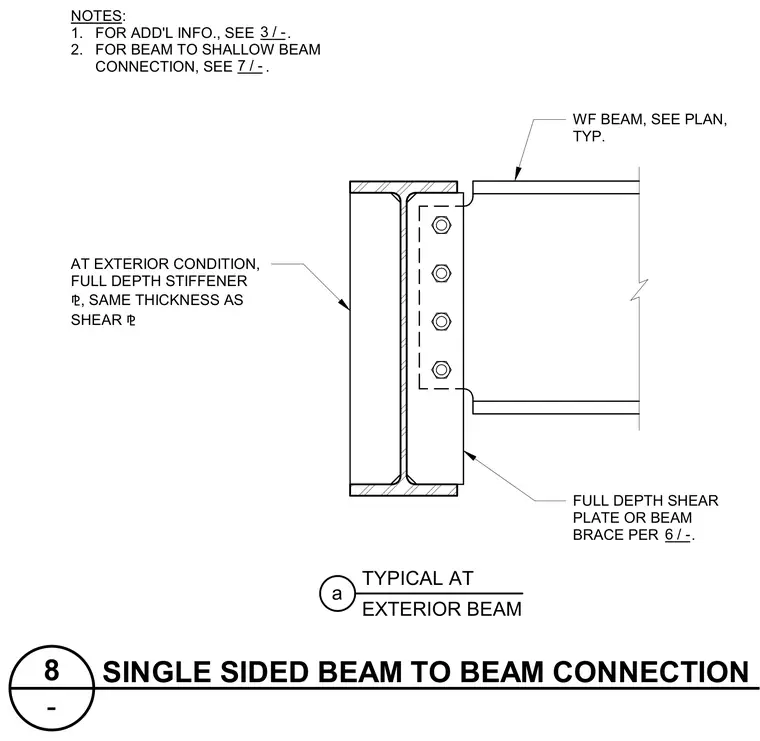

A wide-flange framing beam connects to the web of a supporting beam using a full-depth shear plate sized per plan with a vertical line of four bolts. At the exterior condition, a full-depth stiffener plate of the same thickness as the shear plate is welded to the supporting beam web. Additional conditions refer to related sheets for auxiliary framing and shallow beam connections.
